The Low Range Off-Road Suzuki Samurai Spartan Locker and Gear Set Kit is designed to increase torque, traction and controllability far beyond the capabilities of the stock 3.73 ratio differential. While the unmodified differential may be fine for factory 205/70R15 tires and modest inclines, drivers desiring higher levels of performance have long recognized the advantages of gear reduction and differential locking.
Our Spartan Locker and Gear Set Kit contains all of the components necessary for a 4.57 ratio (23% lower than stock) or 5.38 ratio (44% lower than stock) regear and Spartan Locker differential upgrade.
The gear set is the highest quality crown ring and pinion available for the Samurai. They are made from heat treated 8620 alloy steel on industry-leading Gleason Corporation milling machines. These gears have been torture-tested off-road on the the toughest trails across the globe. Our strict manufacturing tolerances ensure more consistent set-ups and wear patterns than any other aftermarket crown ring and pinion gear set available.
The Spartan Locker is manufactured from 9310 alloy steel for added durability.

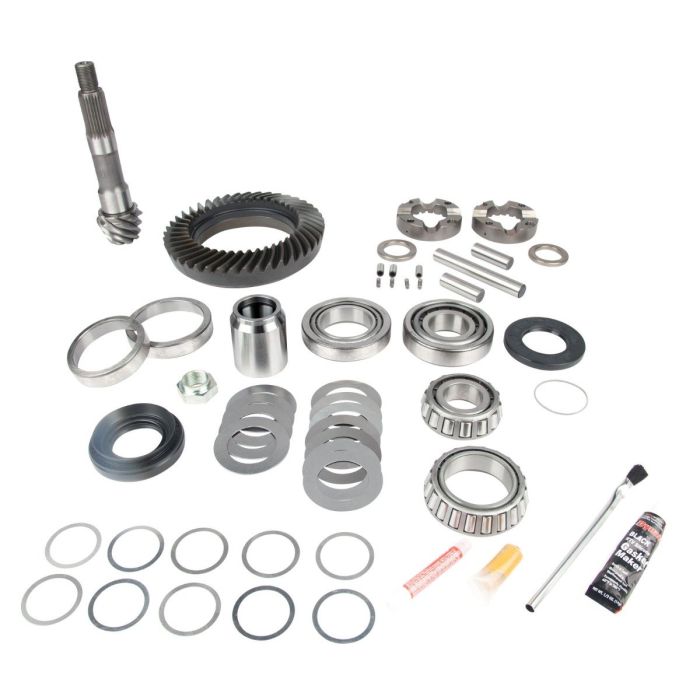

Kits Include:
- Spartan Locker
- 4.57 or 5.38 Ratio Crown Ring and Pinion Gear Set
- Choice Koyo, NSK or Nachi Bearings
- High Quality Solid Pinion Spacer, Shims and Staking Nut
- OEM Style Pinion Oil Seal w/Dust Flange
- Gear Marking Compound with Brush
- Red Thread Locker and RTV Silicone Gasket Maker
PLEASE NOTE: YOU MUST USE A 4-PIN CARRIER! 2-PIN CARRIERS (COMMONLY FOUND ON 1990+ SAMURAIS) ARE NOT COMPATIBLE WITH THE SPARTAN LOCKER!
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Crown Ring and Pinion Gear Set: Heat-Treated 8620 Alloy Steel
Spartan Locker: 9310 Alloy Steel
1986-1995 Suzuki Samurai
