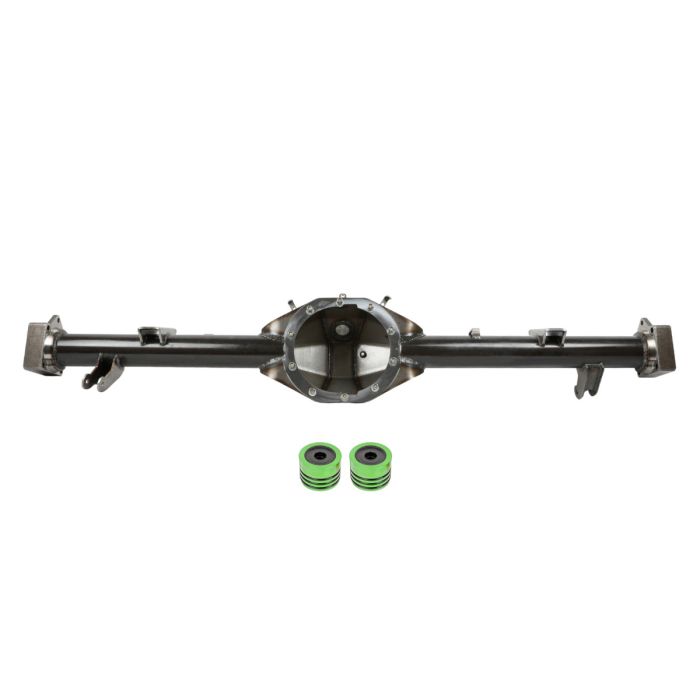

MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma
MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma
If you’ve installed the All-Pro Modular Long Travel (MLT) Kit on your Tacoma, you know how strong your front end is now. What you need to finish your build is a rear axle that is tough as your MLT front end. We have solved that issue with the MLT-Width Rock Assault 9 Axle Housing for 2nd & 3rd Gen Tacoma trucks.
Using the same tough construction that is used in our builder Ford 9" axles, these axles come with all the brake line & sensor wire mounts to make this an easy bolt-on installation. These housings are compatible with Ford 9" differentials, which are stronger than stock Toyota differentials and have a large range of aftermarket support.
We have made these available in your choice of 1/4" or 3/8" thick wall 3.5" or 4" OD axle tubes. You can also choose spring perches & shock mounts to make this a true bolt-on installation or choose the no spring perch & shock mounts option if you want to weld in your own link & shock brackets.
AVAILABLE OPTIONS:
TGI-313607 - MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma - 1/4" | 3-1/2" | With Spring Perches and Shock Mounts
TGI-313608 - MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma - 3/8" | 3-1/2" | With Spring Perches and Shock Mounts
TGI-313609 - MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma - 1/4" | 4" | With Spring Perches and Shock Mounts
TGI-313610 - MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma - 1/4" | 3-1/2" | Without Spring Perches and Shock Mounts
TGI-313611 - MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma - 3/8" | 3-1/2" | Without Spring Perches and Shock Mounts
TGI-313612 - MLT-Width Rock Assault 9 Bolt-In Axle Housing for 2nd & 3rd Gen Toyota Tacoma - 1/4" | 4" | Without Spring Perches and Shock Mounts
IMPORTANT NOTES:
Will not work with stock U-bolts. You will need to use a U-bolt flip kit suitable for use with 3.5" or 4" OD axle tubes (sold separately). We recommend our All-Pro U-Bolt Flip kit for 3.5" or 4" OD Axle Tubes (see Related Items below).
Pinion is offset 2-1/4" to the right-hand (passenger) side to allow extra clearance between the rear driveline & the gas tank. This also allows the use of the same length axle shaft on either side.
You will need Dana 60/Ford 9" unit hubs, 35-spline Ford 9" axles, a Dana 60 Drive Flange kit, & a rear disc brake kit to complete your build (see Related Items below).
Unit Hubs
TGI-313414 (6 on 5.5” BC)
TGI-313415 (8 on 6.5” BC)
Axle Shafts
LF-313451 (37.5" [983mm] for ARB Lockers)
LF-313452 (38" [965mm] for Detroit/Spool Lockers)
302903 (Custom Length Axle)
Note: Using other lockers and/or using non-Trail-Gear unit hubs may require different shaft lengths.
Drive Flange Kit
144007-KIT
Rear Disc Brake Kit
120277-KIT
For use with Ford 9" differentials only. Not compatible with Toyota differentials. We recommend our Fully Built Ford 9" differentials (see Related Items below).
72" WMS length when used with Trail-Gear Unit Hubs & Trail-Gear Ford 9" Brake Hats. Using Unit Hubs and/or brake kits from other manufacturers may result in a different WMS length.
Ford 9" ABS sensors are not compatible with Tacoma ECUs. This will cause your ABS warning light to stay on.
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Industry-first 3-point design for superior tube engagement.
- Your choice of 1/4" or 3/8" thick wall 3.5" or 4" OD axle tubes.
- Bracketry provides mounting points for stock Tacoma Brake Lines & sensor wires.
- Center section & leaf spring perches made from CNC-formed 1/4" thick ASTM A36 steel.
- Faceplate is made from 1/2" thick ASTM A36 steel and machined after welding for a flush differential fit.
- Brake line tabs made from 3/16" thick and 11-gauge CNC-formed ASTM A36 steel.
- Shock mounts are made from 3/16" thick CNC-formed ASTM A36 steel and fully welded for added strength.
- Inspection hole kit installed.
- Includes M8 mounting hardware for brake line brackets.
- Rock Assault 9" seal housing kit included.
- 72" WMS (With Trail-Gear Unit Hubs & Trail-Gear Brake Hats). Using Unit Hubs and/or Brake Hats from other manufacturers may result in a different WMS length.
- 2-1/4" pinion offset to the right-hand (passenger) side to allow extra clearance between the rear driveline & the gas tank. This also allows the use of the same length axle shaft on either side.
- Ships bare, painting required before installation.
| TOYOTA TACOMA (2005-2023) 2005 Toyota Tacoma 2006 Toyota Tacoma 2007 Toyota Tacoma 2008 Toyota Tacoma 2009 Toyota Tacoma 2010 Toyota Tacoma 2011 Toyota Tacoma 2012 Toyota Tacoma 2013 Toyota Tacoma 2014 Toyota Tacoma 2015 Toyota Tacoma 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma 2023 Toyota Tacoma |
