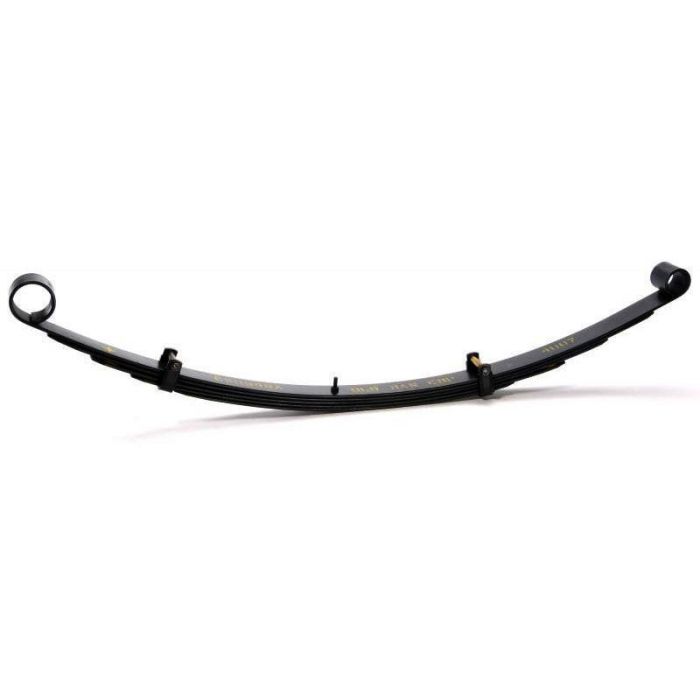

Dakar Rear Leaf Spring Set for 2007+ Tundra with D28XL Extra Leaf

• Dakar Series Springs provide approximately 2.5" lift on a 2007+ Tundra
• Bushings pre-installed in the spring eyes
• Bolts on with your factory spring hardware and shackles
• Draw tapered and diamond cut leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends, this provides increased ride quality and protection against leaf breakage, significantly increasing the spring life
• Bolt clamps and liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners
• Fully scragged and load tested: Scragging ensures the spring takes a permanent ‘set’ which reduces the risk of sagging, load testing ensures the spring meets the required specification
• Military wrap: Designed to provide added safety
• Anti-friction pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest
• Flat axle seat area: Allows a positive, safe axle mount reducing spring stress and increasing spring life
• Shot peening: The tension side of all leaves is shot peened to reduce spring stress, this process can double the life of a spring
• Two-stage leaf pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added
• Sold as a pair

**NOTE: A recommended addition is the OME FK32 Fit Kit which includes brake hose and ABS sensor wire relocation brackets that will prevent the factory components from being stretched too tight (or damaged) when the suspension is fully extended

**NOTE: Models with rear sway bar will require end link modifications to retain sway bar in operation

INCLUDES

• CS055R Rear Spring Set

OPTIONAL PRODUCTS

• OME FK32 Fit Kit - brake hose and ABS sensor wire relocation brackets
• Optional greaseable shackle and poly shackle bushing set available separately
• Optional extra leaf available separately for customers requiring extra ride height or heavy load stability
• U-bolts
