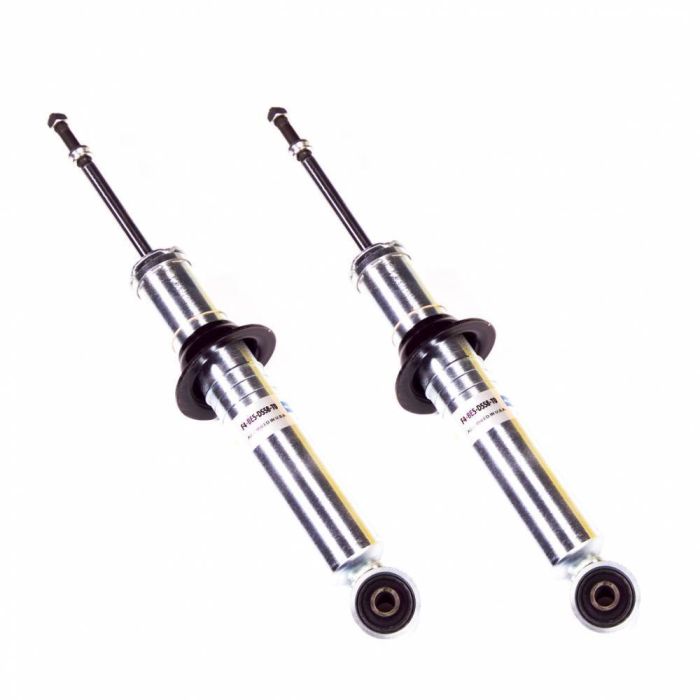

Bilstein 5100 Height-Adjustable Front Shock Pair For 1995-2004 Tacoma


Bilstein 5100 Height-Adjustable Front Shock Pair For 1995-2004 Tacoma
These high-performance Bilstein front shocks have multiple spring seat positions that provide approximately 0"-2.5" lift with your factory coils. The notches support an easy-to-move spring clip that supports and locks the spring seat in place. These are made to work with your factory coils but we have some customers who run these with coils such as OME 2880, OME 2881, OME 2883, or Wheeler’s T1. To simplify your installation process, we offer multiple fully assembled kits.
We now have these in two different versions. We have the original BE5-D558-TO shock that has been around for years (built by Bilstein exclusively for Race Car Dynamics) as well as the new 24-249928 available directly from Bilstein.
The 24-249928 has 4 spring seat clip grooves and the BE5-D558-TO has 3 spring seat clip grooves. The 4th clip groove on 24-249928 is slightly higher than D558’s highest clip groove which indicates that it has the ability to provide more lift or preload than the D558. The 24-249928 includes two front bump stop spacers (big washers) for use when utilizing the 4th (highest) groove.
The D558 has a heavy-duty primary shaft wiper protecting the main shaft seal instead of the plastic boot that 24-249928 uses. Other than that they appear identical. We’ve got some comparison pictures in the gallery for your review.
Good for lifting, leveling, or compensating for winches, snowplows, etc. Performance valved to provide better handling.
These struts don’t come with new stem cushions or washers; you can re-use your existing cushions and washers or we offer them separately.
NOTE: Please click the 'Specifications' tab for a summary of all available options.
These struts are built-to-order items. A cancellation fee of 20% will be charged if the order is canceled after strut assembly begins. |
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- An extremely affordable and practical alternative to coil spring spacers
- BILSTEIN's superior monotube design
- Zinc finish with multi-layer unique BILSTEIN coating for extreme protection
- Self-adjusting deflective disc valving with independent rebound and compression tuning
- Limited Lifetime Warranty
- Sold as a pair
AVAILABLE OPTIONS:
WOR-307050 | Assembly: Fully Assembled Strut (See Item Description), Front Coils: Eibach Coils, Shocks: BE5-D558-TO |
WOR-307051 | Assembly: Fully Assembled Strut (See Item Description), Front Coils: OME 2880 Coils (500 lb/in), Shocks: BE5-D558-TO |
WOR-307052 | Assembly: Fully Assembled Strut (See Item Description), Front Coils: OME 2881 Coils (500 lb/in), Shocks: BE5-D558-TO |
WOR-307053 | Assembly: Fully Assembled Strut (See Item Description), Front Coils: OME 2883 Coils (590 lb/in), Shocks: BE5-D558-TO |
WOR-307054 | Assembly: Fully Assembled Strut (See Item Description), Front Coils: WOR Coils (620-lb/in), Shocks: BE5-D558-TO |
WOR-307066 | Fully Assembled option includes (2) BIL-24-249928 struts with Eibach E30-82-006-05-20 springs, new strut mounts, and assembly labor. |
WOR-307067 | Fully Assembled option includes (2) BIL-24-249928 struts with 500-lb OME 2880 springs, new strut mounts, and assembly labor. |
WOR-307068 | Fully Assembled option includes (2) BIL-24-249928 struts with 500-lb OME 2881 springs, new strut mounts, and assembly labor. |
WOR-307069 | Fully Assembled option includes (2) BIL-24-249928 struts with 500-lb OME 2882 springs, new strut mounts, and assembly labor. |
WOR-307070 | Fully Assembled option includes (2) BIL-24-249928 struts with 590-lb OME 2883 springs, new strut mounts, and assembly labor. |
WOR-307071 | Fully Assembled option includes (2) BIL-24-249928 struts with Wheeler's Off-Road springs, new strut mounts, and assembly labor. |
WOR-307072 | Fully Assembled option includes (2) BE5-D558-TO struts with 500-lb OME 2882 springs, new strut mounts, and assembly labor. |
WOR-306988 | Unassembled option is a set of (2) BIL-24-249928 Bilstein struts only. |
TOYOTA TACOMA
(1995-2004)
1995 Toyota Tacoma
1996 Toyota Tacoma
1997 Toyota Tacoma
1998 Toyota Tacoma
1999 Toyota Tacoma
2000 Toyota Tacoma
2001 Toyota Tacoma
2002 Toyota Tacoma
2003 Toyota Tacoma
2004 Toyota Tacoma
Bilstein Warranty Policy - North America
The following limited warranty from BILSTEIN applies to all purchasers (hereinafter “Purchaserâ€) who have purchased a BILSTEIN aftermarket product (hereinafter “Productâ€) in North America (hereinafter “NAâ€) from a BILSTEIN distributor. This warranty is non-transferable.
BILSTEIN warrants that Products purchased from a BILSTEIN distributor in NA shall be free from defects in design, material and workmanship for as long as the original purchaser owns the product and it is installed on the original vehicle for which the product was purchased.
Within the warranty period, the authorized BILSTEIN distributor shall be obligated to repair or replace a defective Product at its discretion. This does not apply if the product has been used improperly and contrary to BILSTEIN’s instructions. Further claims for defects by Purchaser are excluded.
To exercise its warranty rights, Purchaser must contact the BILSTEIN distributor in NA from whom the Product was originally purchased to request the return of the Product and the issue of a return goods authorization (RGA). If the Product is to be returned, Purchaser is obligated to package the Product safely for transportation, include a copy of the invoice as proof of purchase, affix the RGA number visibly and legibly to the outside of the package and return the product to the BILSTEIN distributor at its own expense. Payment by BILSTEIN or the BILSTEIN distributor of import costs (customs or other government fees, tariffs, handling fees) incurred in connection with international returns is expressly excluded.
BILSTEIN or the BILSTEIN distributor shall under no circumstances be liable for consequential damages (such as, but not limited to, labor charges and/or lost profits) resulting from the use, misuse or inability to use the Product or from defects of the Product. This limitation of liability does not apply to injuries to persons, in the event of willful intent or gross negligence, or if a material, contractual obligation was violated.
In the event of improper use, in particular installation in vehicles not recommended by BILSTEIN, track racing or off-road use (unless the product is expressly designed for such use), all warranty claims are void.
Warranty Restrictions
The limited warranties set forth above do not cover normal wear and tear and are non-transferable.
Exclusions include:
- Surface finish, boot or mounting hardware such as, but not limited to, rubber bushings, bearings, valve shims
- Original equipment shock absorbers - which are warranted by the vehicle manufacturer
- Damage caused by improper installation
- Damage caused to non-motorsports product as a result of racing, driving competition or off-road use
- Use on modified or other than Bilstein-recommended vehicles
- Bent or broken rods showing abuse or abnormal wear
- Cosmetic damage such as scratches, notches, dents and corrosion
- Damage to products which have been altered without the written approval of BILSTEIN or the BILSTEIN distributor
- Damages caused by road hazards, accidents, improper use, water, flooding, fire or other natural phenomena or external causes
Warranty Categories
BILSTEIN warrants to the original retail purchaser that, for the periods specified below, each gas pressure shock shall be free from defects in material and workmanship. This warranty is non-transferable and does not cover normal wear and tear.
Proof of purchase is required to process warranty. Any implied warranty of merchantability, fitness or fitness for particular purpose, except as may be prohibited by applicable law, is likewise limited in duration to timeframe specified below, from the date of original retail purchase.
Some States do not allow limitations on how long an implied warranty lasts so the above limitation may not apply to you.
Limited Lifetime Warranty
- B4 OE Replacement
- B3/B4 OE Replacement Air Suspension (Spring and Strut)
- B6 / B6 Performance
- B8 Performance Plus
- B12 Series
- B14 (PSS)
- B16 (PSS9 & PSS10)
- B6 4600
- B8 5100
- B8 5100 (Ride Height Adjustable)
- B8 5112
- B8 6112
Limited 2 Year Warranty
- B1 Air Compressor (only)
- B8 5160
- B8 5162
- B8 8100
- B8 8112
- B3 Coil Springs
- Steering Racks
Limited 90-Day Warranty
- B1 (excluding Air Compressor)
- Clubsport
- Motorsport
- B8 5125
- B8 5165
- M 7100
- B8 8125
- B8 9200
- B8 9300
- Service Repairs
To view BILSTEIN's complete Warranty Promise and Processing Procedures, please visit the BILSTEIN Warranty page.
