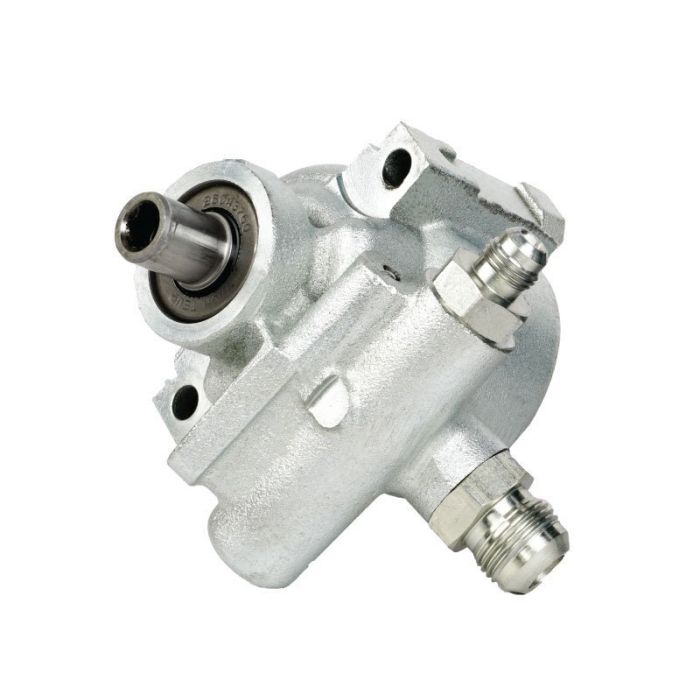

Trail-Gear Power Flow™ 1650 psi Power Steering Pump for Hydro Ram Assist Steering
The Trail-Gear Power Flow™ 1650 psi Power Steering Pump has been designed and engineered to provide ultimate performance in hydraulic ram steering applications . It is a direct replacement for "TC" and "CB" style pumps.
The body of the pump is constructed of steel to increase reliability and decrease wear. It is equipped with heavy-duty hardened internals, large bushings and an oversized shaft making it ideal for high HP motors with greater radial loads.
The Power Flow™ Pump has one of the highest flow rates in the industry and maintains flow consistency across all RPMs. It will not bypass early.
Power Flow™ Introduction Video
|
Introducing Power Flow™ |
Power Flow™ Variants
| APPLICATION | SKU | DESCRIPTION & APPLICATION NOTES | IMAGES |
|---|---|---|---|
|
85-95 Toyota 4Runner |
130304-1-KIT |
Includes:
|
 |
|
95-04 Toyota Tacoma |
300154-1-KIT |
Includes:
|
 |
|
95-04 Toyota Tacoma |
130612-KIT |
Includes:
|
 |
|
Universal |
130303-KIT |
This kit the Power Flow™ 1650 psi Power Steering Pump without a Pulley. Use the Power Flow™ Power Steering Pump Pulley Diameter Calculation PDF to calculate the pulley diameter for your custom application. |
 |
- Warning! The Power Flow™ Power Steering Pump has a maximum rotational speed of 7,000 RPM. Do not drive the pump beyond 7,000 RPM! If you intend to use the pump in a custom build, you will need to calculate the correct pump pulley size to ensure that you never drive the pump beyond 7,000 RPM. Please consult our Power Flow™ Power Steering Pump Pulley Diameter Calculation PDF for the formula and a practical example of how to do this. You may also contact our Technical Support at 1.877.4X4.TOYS or 559-252-4950 or by email at tech@trail-gear.com for additional assistance with your calculations or with any other aspect of your build.
- Use of anything other than a Power Steering Pulley Puller/Installer to install or remove a pulley from your Power Flow™ Power Steering Pump will void the warranty!
- Pump operates in the clockwise configuration
Power Flow™ Hydraulic Ram System - Related products (Sold Separately)
| CATEGORY | SKU | DESCRIPTION & APPLICATION NOTES | IMAGES |
|---|---|---|---|
|
Hydraulic Fluid Cooler |
If you're running a high volume/pressure pump your system is generating much more heat then the stock system. Fluid overheating can cause damage to steering pump and steering box. Installing a oil cooler in front of the radiator is the best way to prevent this over heating. Our cooler features a fin area of 9" X 8" and does a great job of keeping the steering fluid temps under control in all conditions. Mounting kit is included with the oil cooler.
|
 |
|
|
Hydraulic Reservoir and Filter |
When you have invested thousands of dollars into your full hydraulic steering system, you will want to protect it with the best reservoir and filter that you can get. That is why Trail-Gear has developed our new Rock Assault™ Reservoir. It is not only heavy duty, but also compact and user friendly. It features a full size hydraulic oil filter that will keep all the bad stuff out of your power steering pump and hydraulic ram. Our Rock Assault™ Reservoir also comes with an internal baffle, features two internal magnets, and is completely sealed with top quality o-rings to prevent any fluid leakage. This reservoir also has a quick drain plug that is located at the bottom of the unit that will allow you to easily drain your system in minutes. Our unique fluid flow design is rated up to 15GPM and allows you to use your steering system while the truck is on its side or at other unusual angles that it might incur during rock crawling or desert racing. Note: Do not fill more than 1/2" above the internal baffle. |
 |
|
|
Hydraulic Fluid Reservoir |
When installing a high flow pump such as the one listed above, it is important to use a larger reservoir to provide enough fluid when the system needs it. The stock reservoir is fine for the stock pump but is not adequate for the TC style aftermarket pumps. Side input of reservoir is a #6 JIC fitting and the bottom outlet to pump is a #10 JIC fitting. Reservoir includes cap. Reservoir bracket makes it easy to bolt in the reservoir on most 4cyl 4X4 Toyota applications from 1979 - 1995. Includes mounting hardware. Unpainted finish.
|
 |
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Details
- 1650 psi Pump Engineered For Ultimate Performance
- All Steel Body
- Heavy-Duty Heat-Treated Internals, Large Bushings, and Oversized Shaft
- Endurance Tested at 400°F
- Steady Flow Across All RPM
- Direct Replacement for "TC" and "CB" Style Pumps
- Each Pump is Bench Tested for Quality Assurance
- Flow Rate = 9.4 mL per revolution (17.4 gallons per minute at 7,000 RPM Max. Speed)
- Warning! The Power Flow™ Power Steering Pump has a maximum rotational speed of 7,000 RPM. Do not drive the pump beyond 7,000 RPM! If you intend to use the pump in a custom build, you will need to calculate the correct pump pulley size to ensure that you never drive the pump beyond 7,000 RPM. Please consult our Power Flow™ Power Steering Pump Pulley Diameter Calculation PDF for the formula and a practical example of how to do this. You may also contact our Technical Support at 1.877.4X4.TOYS or 559-252-4950 or by email at tech@trail-gear.com for additional assistance with your calculations or with any other aspect of your build.
- Use of anything other than a Power Steering Pulley Puller/Installer to install or remove a pulley from your Power Flow™ Power Steering Pump will void the warranty!
- Pump operates in the clockwise configuration
TOYOTA 4RUNNER
(1985-1995)
SKU: 130304-1-KIT
1985 Toyota 4Runner
1986 Toyota 4Runner
1987 Toyota 4Runner
1988 Toyota 4Runner
1989 Toyota 4Runner
1990 Toyota 4Runner
1991 Toyota 4Runner
1992 Toyota 4Runner
1993 Toyota 4Runner
1994 Toyota 4Runner
1995 Toyota 4Runner
TOYOTA PICKUP
(1979-1995)
SKU: 130304-1-KIT
1979 Toyota Pickup
1980 Toyota Pickup
1981 Toyota Pickup
1982 Toyota Pickup
1983 Toyota Pickup
1984 Toyota Pickup
1985 Toyota Pickup
1986 Toyota Pickup
1987 Toyota Pickup
1988 Toyota Pickup
1989 Toyota Pickup
1990 Toyota Pickup
1991 Toyota Pickup
1992 Toyota Pickup
1993 Toyota Pickup
1994 Toyota Pickup
1995 Toyota Pickup
TOYOTA TACOMA 2.7L I-4
(1995-2004)
SKU: 300154-1-KIT
1995 Toyota Tacoma 2.7L I-4
1996 Toyota Tacoma 2.7L I-4
1997 Toyota Tacoma 2.7L I-4
1998 Toyota Tacoma 2.7L I-4
1999 Toyota Tacoma 2.7L I-4
2000 Toyota Tacoma 2.7L I-4
2001 Toyota Tacoma 2.7L I-4
2002 Toyota Tacoma 2.7L I-4
2003 Toyota Tacoma 2.7L I-4
2004 Toyota Tacoma 2.7L I-4
TOYOTA TACOMA 3.4L V6
(1995-2004)
SKU: 130612-KIT
1995 Toyota Tacoma 3.4L V6
1996 Toyota Tacoma 3.4L V6
1997 Toyota Tacoma 3.4L V6
1998 Toyota Tacoma 3.4L V6
1999 Toyota Tacoma 3.4L V6
2000 Toyota Tacoma 3.4L V6
2001 Toyota Tacoma 3.4L V6
2002 Toyota Tacoma 3.4L V6
2003 Toyota Tacoma 3.4L V6
2004 Toyota Tacoma 3.4L V6
UNIVERSAL
(No Pulley Included)
SKU: 130303-KIT
Download the Power Flow Power Steering Pump Install PDF Here
Installation InstructionsFor assistance figuring the correct pump pulley size to ensure that the pump never exceeds 7000 RPM, download the Power Flow Power Steering Pump Pulley Diameter Calculation PDF here
Pulley Diameter Information
